PECOS

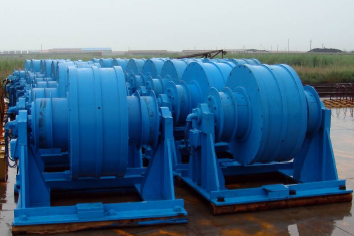

Direct Motorized Pumping Unit
Long
stroke, low speed, high efficiency
This patented pumping unit is suitable for deep well, big volume/capacity, high viscosity (heavy oil) or high water content well, especially for horizontal well application.
|
Model |
Load (lbf) |
Max. Stroke (inch) |
Max. |
Torque (lb·in) |
Energy Saving % |
Weight* (Lb) |
|
BZ50-1798-196 |
179,800 |
196 |
5 |
50,449 |
≥30 |
17,640 |
|
BZ67-2248-276
|
224,800 |
276 |
4 |
67,265 |
≥30 |
19,842 |
|
BZ84-2697-276 |
269,700 |
276 |
4 |
84,967 |
≥30 |
23,149 |
|
BZ84-3596-315 |
359,600 |
315 |
4 |
84,081 |
≥30 |
25,000 |
|
BZ101-3147-315 |
314,700 |
315 |
3 |
101,783 |
≥30 |
24,251 |
|
BZ119-3596-315 |
359,600 |
315 |
3 |
119,484 |
≥30 |
26,457 |
|
BZ137-4046-315 |
404,600 |
315 |
3 |
137,186 |
≥30 |
28,660 |
|
BZ154-4496-315 |
449,600 |
315 |
3 |
154,887 |
≥30 |
37,479 |
*Weight here does not include any counter weight and not accurate, reference only.
Features:
1) Motor direct mounted, no gear box needed
2)
Save site space
50% and the total weight of the pumping unit is only 50% of conventional pump jacks.
3)
Engergy saving
from 30% to 50%. Noise < 50 dB

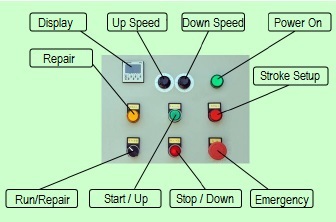

4) Automatic control of the pumping unit. You can change stroke, speed during the units running.
5)
Easy adjust the
counter weights.
6)
Easy
maintainance, just need normal greasing. It is easy to relocate the wheel for
service rig operation.
7) Alarm signal can be sent to your cell phone when lost load, over load, black out etc.
8) Low start electrical current. It can work when the voltage is less than 800V but more than 300VAC.
9) Reliable brake
Auto brake Manual brake
10) Belt wind protection
11) Reliable permanent magnatic motor
Site Installation:
