Permanent Magnet Motor Droved
Long Stroke Pumping Unit
IntelliFlexฎ
Stroke: 12 to 33 feet, Load: 11200
to 67400 Lbs, SPM: 0.1 to 4, Power: 20 to 120HP
Call now 281-683-2797

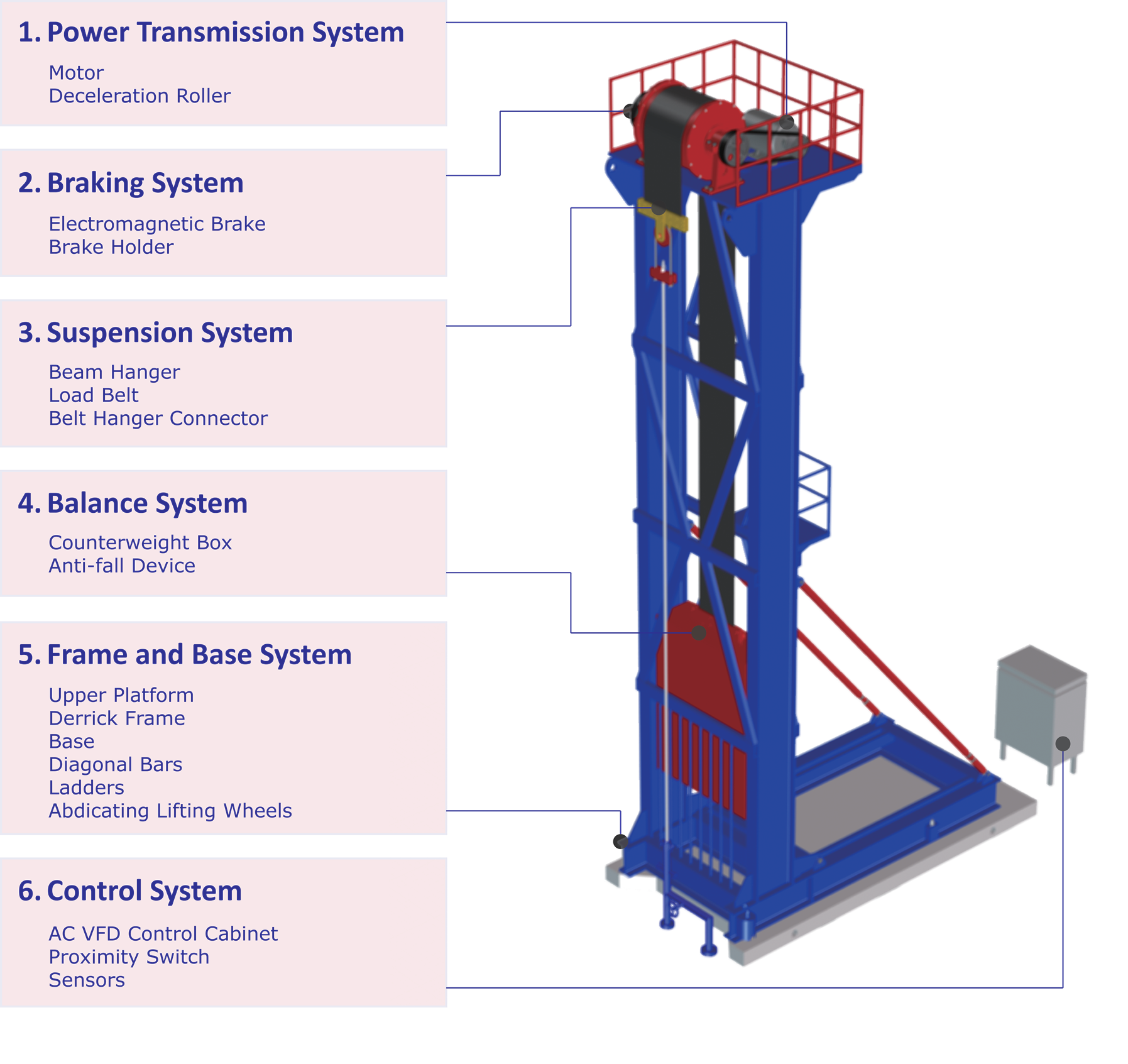

STRAIGHTFORWARD
STRUCTURE
A loading belt and a roller
are the sole transmission components. Creatively, elastic deformation of the
loading belt and the friction between belt and roller vastly reduces the effect
of reversing the direction of rotation resulting in extended service life of
the belt to greater than ten years.

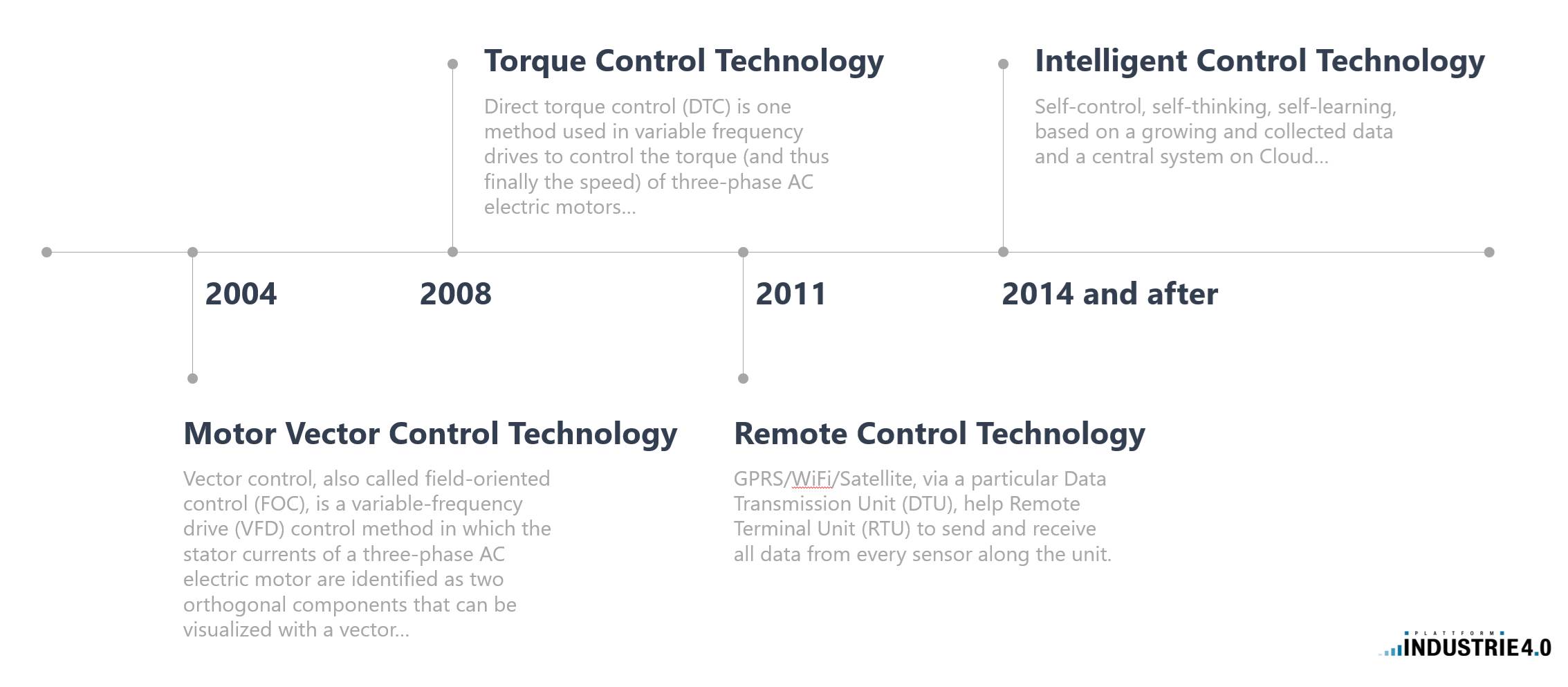

Smart
Control:
With the integrated PLC and
RTU, IntelliFlexฎ can be controlled remotely via the internet allowing for
operational parameters to be detected, analyzed, and modified.
Easy to maintain, low rate of
failure. Electric pulley only replace the lubricating oil every six
months. Electrical control system has the function of self-diagnosis and
display for fault. The conveyor belt has high strength, aging-resistance and
working life up to ten years.
Convenient to relocation when
working and to align wellhead. With using the lifting and relocation mechanism which
is a self-developed patent, the machine can rises walking wheels with the
special wrench and make the pumping unit walk back and forth by driving walking
wheels to remove or replace the wellhead when working. It can adjust the
pumping unit around by driving the lifting and walking mechanism to locate the
polished rod in the center of wellhead when the polished rod and sealer are not
concentric.
The pumping unit not only
applies to the conventional pumping, but also especially deep pumping with
small pump and viscous oil production, so then the unit is a kind of ideal
equipment for lifting oil extraction.
Working environment that the
pumping unit applies to: -50 ℃ ~ 50 ℃ in cold areas,-35 ~ + 60 ℃ in
temperate regions.
FAST,
EASIER, AND SAFE
With topping the roller,
having counterweight built-in, and power loss brake/protection, we ensure safe
design is a priority. A built-in safety system continuously monitors any
overload, load-loss, phase failure, or power-off. Operational parameters can be
modified either via an interactive panel inside the control cabinet or remotely
via the internet.
HIGH
MECHANICAL EFFICIENCY AND ENERGY EFFICIENT
With specially designed AC VFD
control technology, the operating motor can dynamically output power to match
the load requirements providing continuous energy savings. The short drive
chain and adjustable symmetrical balance further contributes to energy savings.
A minimum mechanical efficiency of 85% and minimum system efficiency of 34% is
the result.

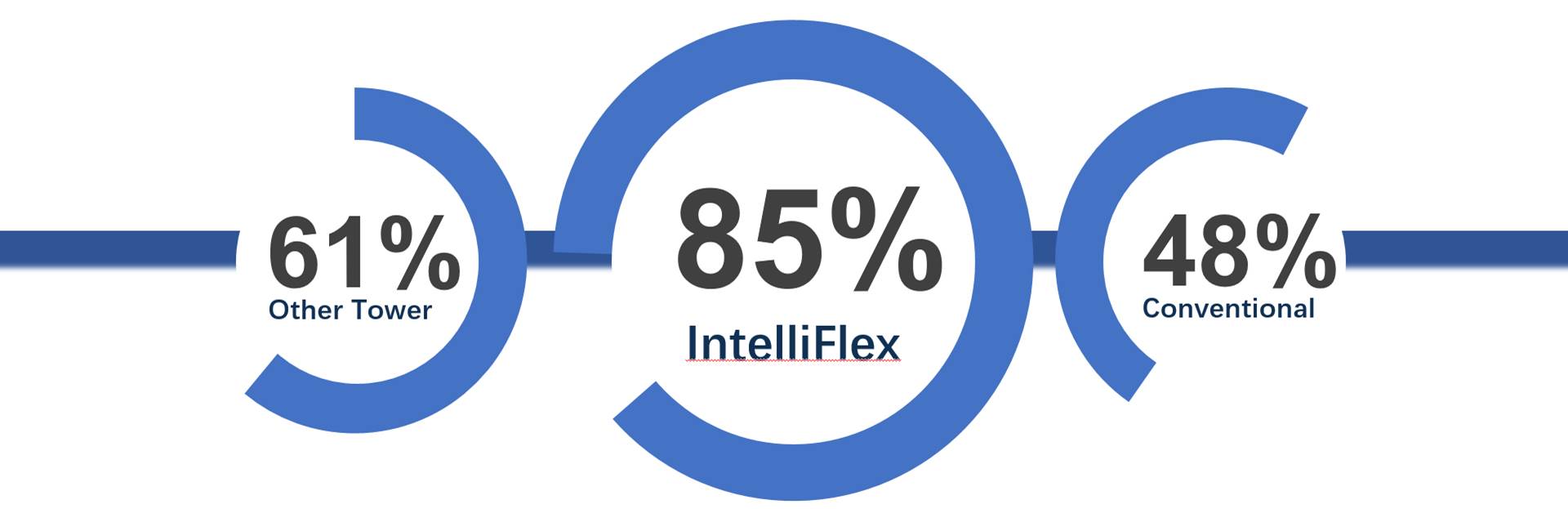

High Mechanical Efficiency

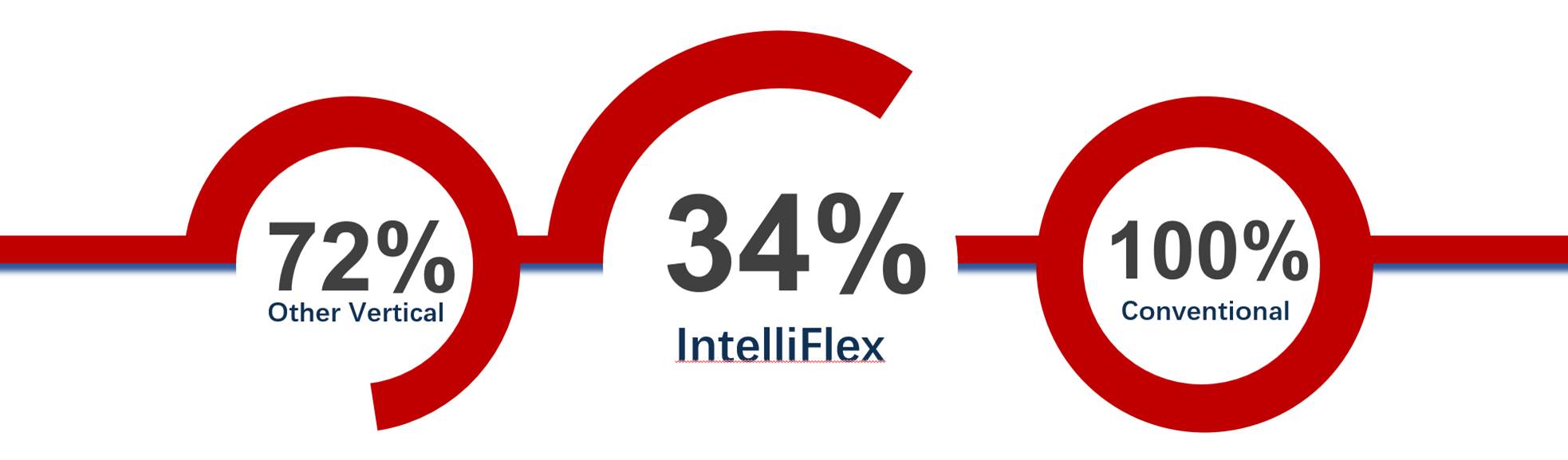

Energy Consumption

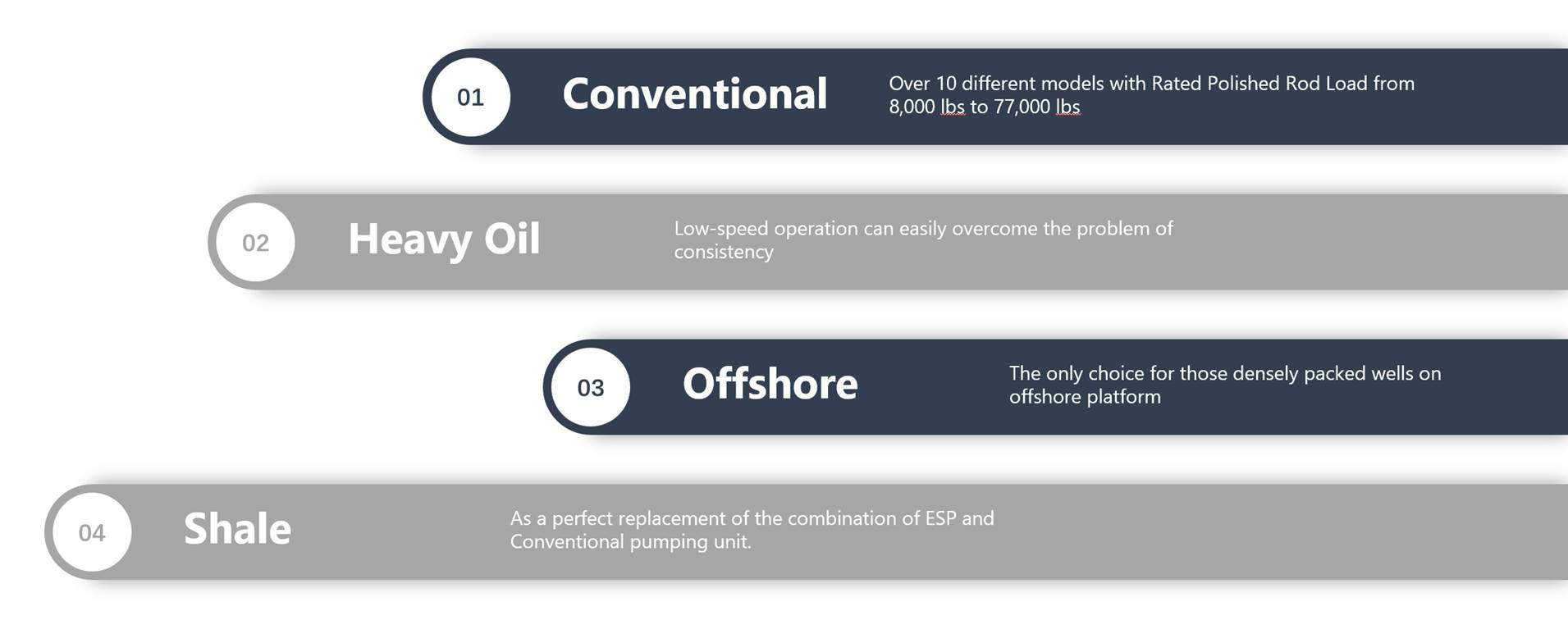

Application:

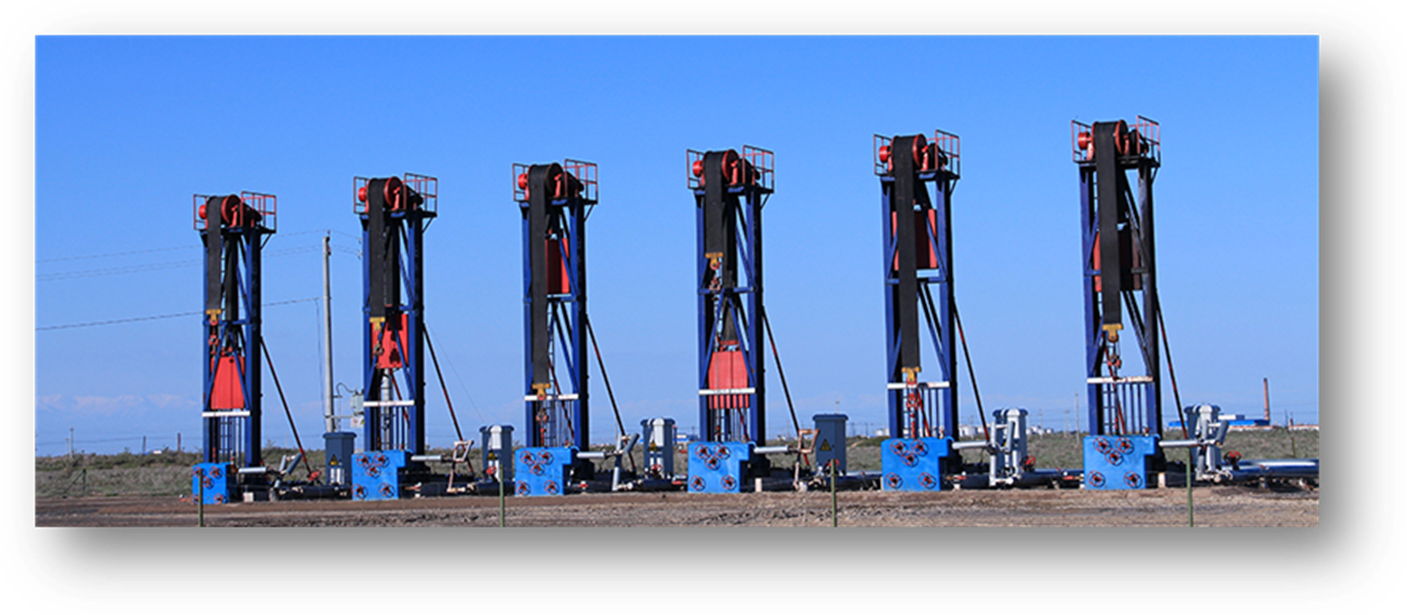

1341 units installed up to June 2017
